Solid-State Sound, Lighting, and Motion Controller

The rPOD-8.4 features Pro-audio quality channels (eight independent audio channel outputs plus with four subwoofer and seven-band equalization for each channel).  Channels can be group as stereo or mono playback or combinations of both.  Audio polyphony (multiple sounds out of one channel).  DMX512 Transmitter/Receiver for lighting and character control, Realtime clock, two RS-232 Serial Ports, two Compact Flash Card interfaces, MIDI In/Out/Thru, Optional expansion bus. Optically isolated inputs(12) and outputs(12) included.  Additional serial interface can be set for RS-232 or RS-485.  High or low side triggering. Four audio inputs.  Powerful new user-programmable sequence scripting language.

(click above for pdf brochure)

MS-2E Solid-State Sound and Motion Controller

The all new Mini-SAM II (Model MS-2E) features 2.1 stereo or 2 independent professional quality audio channels (up to 48.1Khz sampling 16 or 24 bit PCM), with audio polyphony (multiple sounds out of each channel) and DSP functions including seven-band equalization.  Eight optically-isolated input triggers, 16 digital outputs, line outputs mic/line in, on-board 25 Watt per channel power amplifier, real-time clock, DMX-512 in/out, Ethernet, and Compact Flash and RS-232 interfaces.  Powerful new user-programmable sequence scripting language.  Can be used as a digital doorbell or carillon player for church bells and on the hour messaging as well as on-board audio applications (OBA).

(click for above pdf brochure)

DMX-512 Receiver/Controller

The DMX16-DO receives DMX512 data and converts the data to 16-bits of discrete open-collector control. An on-board hi-speed UART and micro-controller ensure a 250 Kbits/sec. and frame rate set @ 32 frames/sec.

(click for above pdf brochure)

SES-5 Sound Effects Simulator

The SES-5 features five independent CD quality audio channels, 16 bit PCM. 256 messages.  On-board record/playback capability. Five 10 Watt power amplifiers, VF Display and keyboard. RS-232 interface.  Water-resistant package and rugged construction for outdoor use.  Microphone and one outdoor waterproof speaker included.  Audio Mic/Line Inputs, Audio Line Outputs, RS-232, and optional RS-485 interfaces. Vacuum Florescent Display (VFD) and keyboard, built-in storage. Microphone and one outdoor waterproof speaker included.

SKE Product Accessories

MM-100 Message Man™ Enclosure

(for Mini-SAM II Sound and Motion Controller)

Encloses Mini-SAM II into a locking enclosure with integrated speaker and motion sensor.  Great for Point-of-Sale and other message repeating applications.

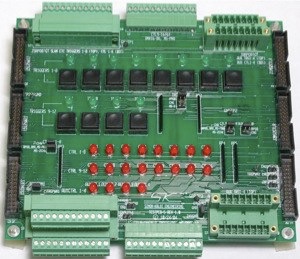

TESTPCB-5

(for Mini-SAM II, Engine Board, rPOD, and DMX16-DO)

Breaks out IDC style connectors to screw terminal Euro-Style removable connectors, 12 trigger switches for manual triggering, 12 trigger status LEDs, 12 control status LEDs.  Provides in-line connectivity between Controller and Load with Test Board in the middle.

MS-2TST

(Mini-SAM II Test Board)

Tests all triggers and controls for MS-2.  Provides optional breakout capability.

MS2BKTV-1

(for Mini-SAM II MS-2E)

Breaks out IDC style connectors to screw terminal Euro-Style removable connectors.  Provides vertical connectivity between MS-2E and load with no additional cabling required.

rPOD8.4.pdfSKE_Products_files/rPOD8.4.pdfhttp://livepage.apple.com/shapeimage_7_link_0

PS-24V

(Regulated Power Supply)

Input: 100-240 VAC 50/60Hz

Output:  Regulated 24VDC @2.5A for MS-2E, DMX-16DO and other devices.

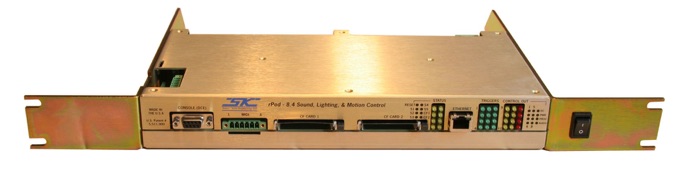

rPOD-8.4ENC (1U High Packaged Version of the rPOD-8.4)

Shown in conductive Chemfilm finish.  Also availble in black finish.
