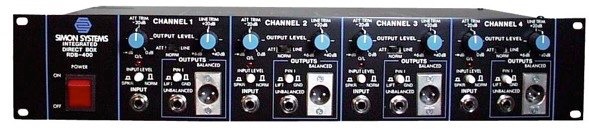

RDB-400
Four independent Direct Boxes in one 2U Rack Space with a totally active transformerless audio path. Line level output mode allows direct insertion into tape decks, bypassing mic pre-amps and mixing consoles completely. Variable line and attenuation trim converts -10dB signals to +4dB and vice-versa. Can also be used as a pre-amp or buffer. Rugged construction for stage use.
PDF Brochure
DB-1A
The ultimate in direct insertion capability utilizing state-of-the-art design techniques not found in conventional direct boxes. Totally active transformerless audio path with no insertion loss. Line-level output mode allows direct insertion into tape decks, bypassing mic pre-amps and mixing consoles. The DB-1A has incredible headroom, more than most mixing consoles.
PDF Brochure
PS-1
The optional (but strongly recommended) companion for the DB-1A Direct Box. Provides clean, independent, low-impedance regulated ±18VDC power. The high current output allows the DB-1A to utilize state-of-the-art designs not possible with phantom powered DIs. Can also double as a charger when the DB-1A is used with rechargeable batteries.
PDF Brochure

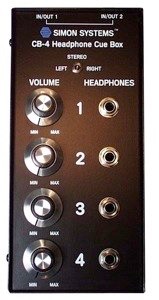

CB-4
Drives up to four pairs of stereo headphones from the same audio power amplifier. Each output has its own custom-made high-quality stereo volume control. A three-position switch selects left, right, or stereo mix for separate mixes selectable by the artist. Multiple CB-4s can be daisy-chained for virtually any number of headphones. Designed for most modern recording studio headphones.
PDF Brochure
CB-2
Drives up to two pairs of stereo headphones from the same audio power amplifier. Each output has its own custom-made high-quality stereo volume control. Both 1/4" and 1/8" jacks for each headphone output accommodate the two most common headphone connectors as well as mono versions. Multiple CB-2s can be daisy-chained for virtually any number of headphones.
PDF BrochureProduct Accessories
MA-1
Adapts the Simon Systems CB-4 Headphone Cue Box for mounting to a microphone stand.
